Tire modeling in 3D Max

“Tire modeling in 3D Max ” by Aziz Khan

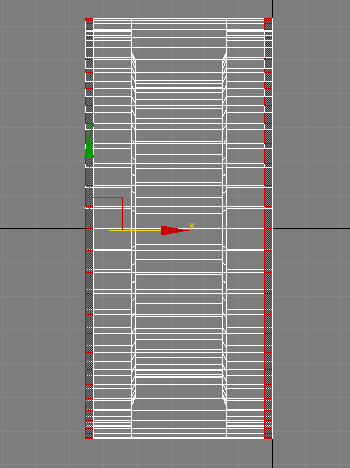

24-go to side view and then select these faces as below.

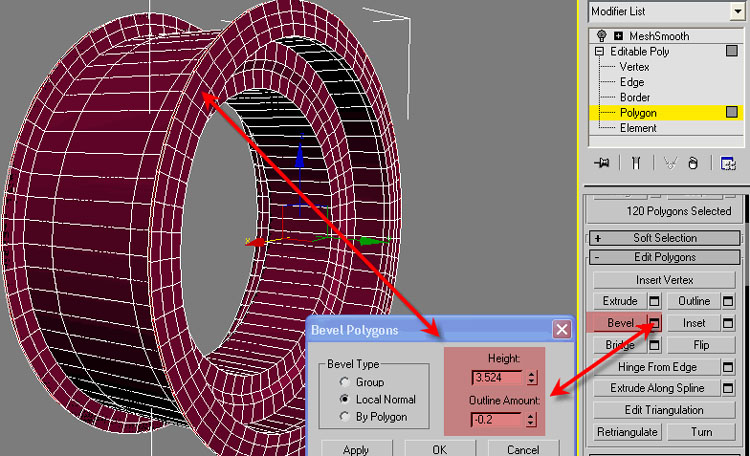

25-now bevel it, first bevel 0 in the (outline amount) in the height any value you will like, for second bevel do the same setting as below.

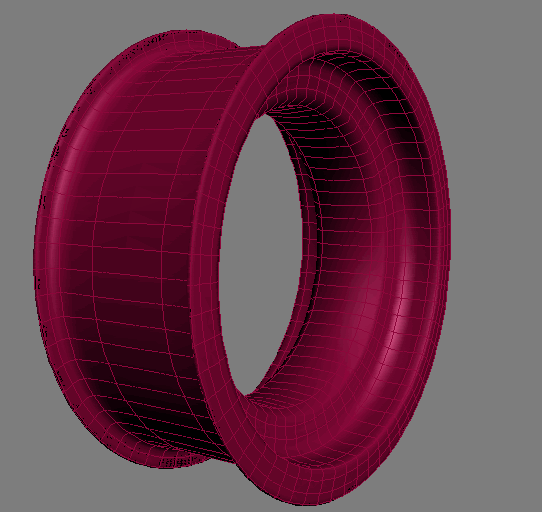

26-apply mesh smooth you will see something like in the picture below.

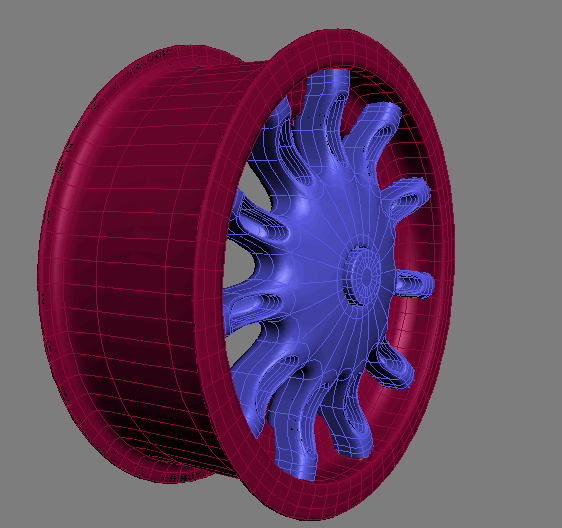

27-now assemble the rim with wheel as below.
