Modeling a High Definition Building – part 2

by Jahan Zaib
Hello everyone!

In this tutorial i will show you how to model a high definition building in 3ds Max 9.  This is part 2 of my tutorial, you still need  3ds max 9 and some High Resolution Images of Buildings and Skyscrapers. You can not start without good reference images, they are important. U can get some from http://www.environment-textures.com -  you will find high resolution images of buildings there.

Final image

..for modeling a building first you need a basic floor plane for the building design. Let me show you the basic floor plane what i mean and how it work …

So lets start it!!!

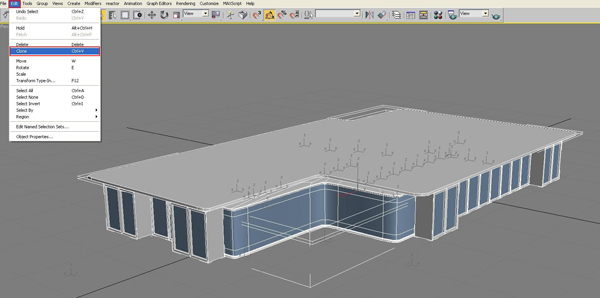

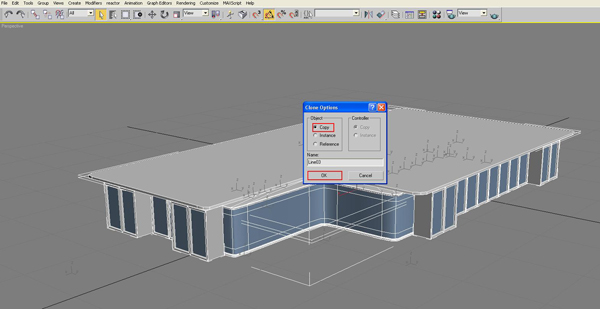

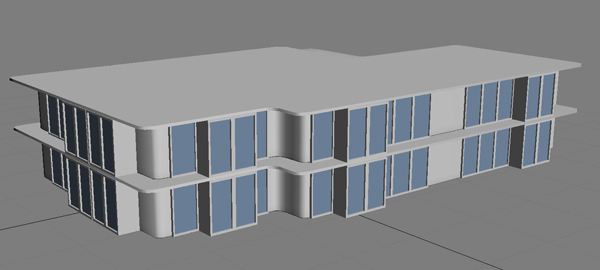

Step 01:select all , clone the ground floor and move it up as like in the picture.

Base map
Base map
Base map

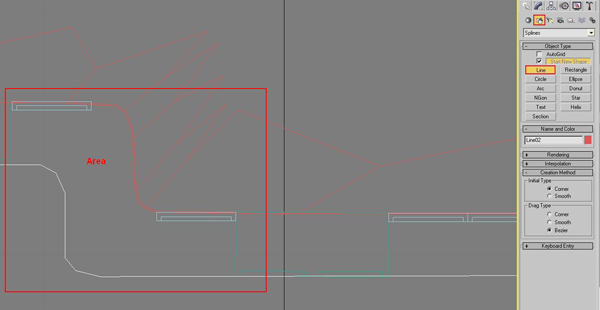

Step 02:now need to add Railing in the empty area .first choose the area where i need to add Railing

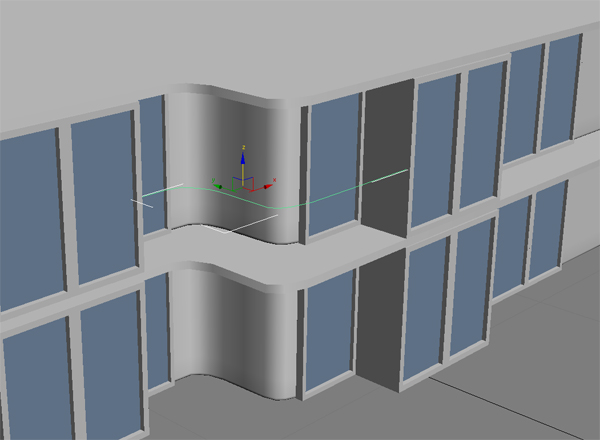

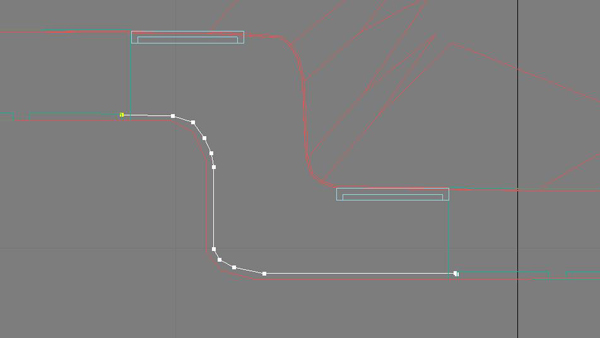

then go to Shapes>Line>and start making line as like area shape.

Base map
Base map
Base map

Step 03:Geometry>ACE Extended>Railing >Pick Railing Path>click on Line.
Base map
Base map
make some changes

Base map

Base map

delete the line .

Base map

Step 04:just change the Railing color and use the same method for all Railing area in ground floor.

Base map

Base map

Step 05:Select the first floor and clone it 18 times.

Base map

Base map

Step 06: Looks cool :) now lets make a door for ground floor. select these two windows, just make

some changes in windows.

go to Editable Poly> click on Attach and attach both windows.

Base map

Step 07:start editing in this window for change it in door. select the vertexes and move close the vertexes position.

Base map

make some space for the door handle.

Base map

Step 08: i have completed the door frame lets start the door handle then door will be complete.

go to Shapes>Line>and make handle shape.

Base map

Base map

Step 09: go to Modify>Rendering>click on Enable In Renderer and Enable.

Base map

lets make some changes.

Base map

Step 10: fix the handle on right place and clone it as like picture.

Base map

Step 11: ground floor have completed. now i will make top floor.

clone the top floor with out roof and attach the all parts of top floor.

Base map

Step 12: Delete these Railing and 3 windows.

Base map
Base map

Step 13: Editable Poly>Vertex>select these vertexes and move back as like pictures.

Base map
Base map
Base map
Base map

Step 14: now need to fix this place. go to Editable Poly>Vertex>select these vertexes and set

position.

Base map
Base map

Step 15: lets finish the last part of this area .go to Editable Poly>select Cut and make the cuts
here.

Base map
Base map

Step 16: go to Editable Poly>Polygon>select the face and Extrude (32.262).

Base map

Step 17: select the Edge>Chamfer (19.041).

Base map

Step 18: select both edges and Connect with 3 segments.

Base map

Step 19: set the vertexes position as like picture.

Base map
Base map

Step 20: lets make the Railing with the same method, I did in Step 34.

Base map

Step 21: i am going to make Helipad and the end of tutorial i will make stairs.

go to Geometry>Cylinder>and make a Cylinder for Helipad base.

Base map
Base map

Step 22: right click on the object and then convert it to Editable Poly.

Base map

Step 23: Polygon>select the face and click on Inset (0.81).

Base map

Step 24: click on Extrude (-0.42)

Base map

Step 25:Inset (0.12) and Inset (4.08) again one more time. now apply the Mesh Smooth from Modify.

Base map
Base map
Base map

Step 26:bottom of Helipad is looking not not good just Inset (4.08) the bottom one time then it will be fine.

Base map
Base map
Base map

Step 27:now need to make Helipad Logo. go to Shapes >Text> write H and click on view port.

Base map
Base map

Step 28: scale down the text and adjust on Helipad then right click on the text and convert it in to

Editable Poly.

Base map
Base map

Step 29: select the face and Extrude (0.3)

Base map
Base map

Step 30: now lets make the helipad stand. go to Geometry>Box >make a box shape as like pictures.

Base map
Base map

add one edge in the center of box and change the box color.

Base map

clone the box 3 times and rotate the boxes position as like picture.

Base map
Base map

now attach the all boxes. and go to Editable Poly>Vertex>select these vertexes and move up.

Base map
Base map

Step 31: now lets make stairs . go to Geometry>Stairs>Straight Stair>make stairs and change
setting as like picture.

Base map

just scale down the stairs and fix it here.

Base map

go to Editable Poly>Polygon>select these faces and Extrude it two times and drag it as like picture

Base map

now repeat this method for other side of stairs.

Base map

Step 32: now lets work on our last stairs .go to Geometry>Stairs>Straight Stair> make stairs and change

setting as like picture.

Base map

just scale down the stairs and fix it here.

Base map

now change the color of stairs ,helipad and Now you have just completed the High-rise Building :) .
Base map
Base map
Base map
Base map

We just completed second part of this tutorial … thanks for reading and good luck modeling.

Did you already create your own model? Show us your result! Send it by mail or upload to our facebook page at: http://www.facebook.com/3dtutorials
