Caustic effects

“Caustic effects ” by Mario Malagrino

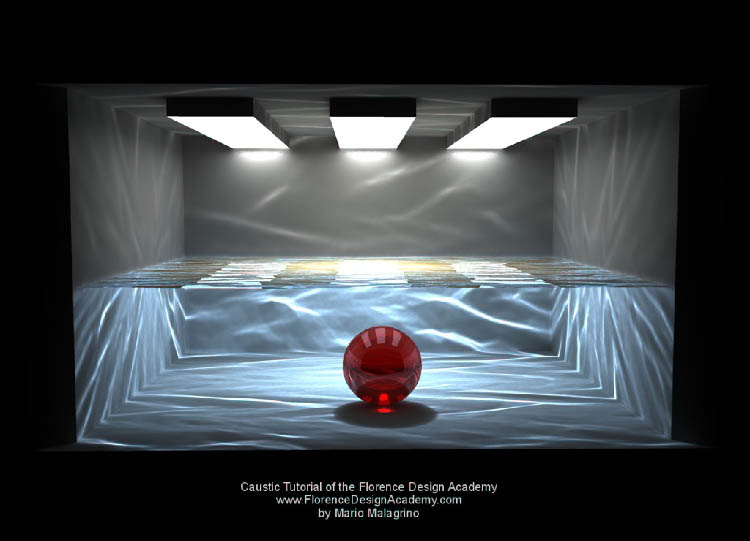

Caustics are really great light effects that you can observe in liquids, glass objects and gems. We are able to simulate this effect with 3D Studio Max perfectly. This tutorial about Caustics will work only if you enable “Mental Ray” ! (This tutorial was made by the Florence Design Academy www.florencedesignacademy.com in Max 8).

3Dtutorials.sk recommendation:

To maximise the realism of your 3D objects we recommend to use high quality photo references from the #1 texture website www.environment-textures.com

1.)

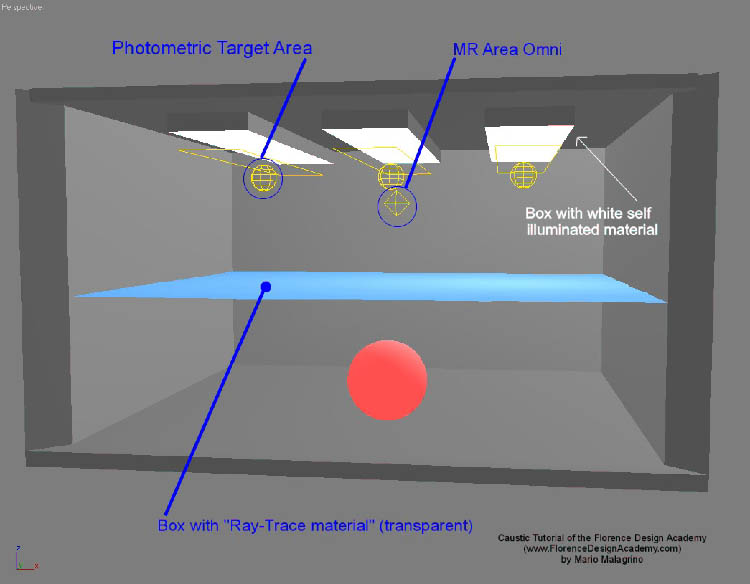

Let’s Create a small room like on image “1” ( try to do that in realistic sizes, it is important that you make the setup of the “unit system”, only in this way Mental Ray will give you an optimal end result since it will consider all measurements of the objects in the scene for the final rendering ).Now create your lights to illuminate the room. There are several techniques to create an correct illumination. In the case of the room I have created 3 long “free area lights” like on image “2”( you can find them under photometric lights ).

2.)
Place them under tree long boxes. Select the bottom polygons of the boxes and assign them a white self illuminated material like on image “3”.

3.)
